Product Introduction

Basic Introduction:

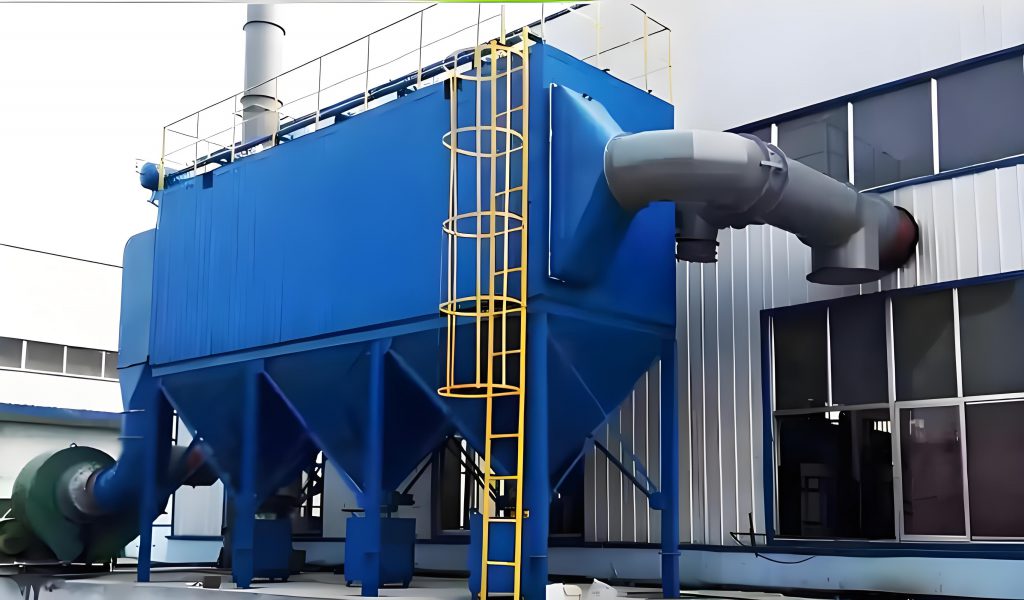

Pulse-jet dust collector consists of ash hopper, inlet and outlet ducts, filtration chamber (middle and lower box), clean air chamber, filter bags (with cages), manual inlet valve, pneumatic butterfly valve, pulse-jet cleaning mechanism, etc.

Performance Features:

1. Utilizing pulse-jet cleaning technology, the equipment offers strong cleaning capability, high dust removal efficiency, low emission concentration, low air leakage rate, reduced energy and steel consumption, compact footprint, stable and reliable operation, and excellent economic benefits. It is suitable for flue gas dust removal in industries such as metallurgy, building materials, machinery, chemicals, power, and light industry.
2. The casing adopts an airtight design with excellent sealing performance. High-quality sealing materials are used for the inspection door, and kerosene leakage testing is conducted during manufacturing, ensuring a very low air leakage rate.
3. The inlet and outlet ducts are compactly arranged, minimizing airflow resistance.
4. Featuring compartmentalized offline pulse-jet cleaning, the system has a long cleaning cycle and low consumption, significantly extending the service life of filter bags and valve plates.
5. Bag replacement can be performed without shutdown, and maintenance does not affect the normal operation of the equipment.
6. The top-loading bag removal method improves the ease of bag replacement.
7. A sophisticated control system ensures long-term and stable operation of the dust removal system.
